M.S. Square Hollow Sections

Hollow Sections are manufactured from a minimum size of 20×20 mm to the maximum size of 250×250 mm with the minimum thickness of 1.6 mm to maximum of 10 mm.

Make- tatastructura

M.S. Square Hollow Section

Square Hollow Section (SHS) Size B x B (mm)
Thickness (mm)
Weight (KG/Metre)
25 x 25
2.6
1.69
25 x 25
3.2
1.98
32 x 32
2.6
2.26
32 x 32
3.2
2.69
38 x 38
2.6
2.75
38 x 38
3.2
3.29
40 x 40
2.6
2.92
40 x 40
3.2
3.49
40 x 40
4
4.2
50 x 50
2.6
3.73

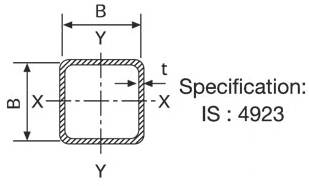

Dimension of Square Hollow Section

IS 4923 ( SHS ) AND IS 4923 ( RHS )

Dimensions and Properties of Square Hollow Section IS 4923:1997
Size
Thickness
Unit
mm
mm
kg/m
25x25
1.6
1.12
2
1.36
2.6
1.69
3.2
1.98
32x32
2
1.8
2.6
2.26
3.2
2.69
38x38
2
2.18
2.6
2.75
3.2
3.29
4
3.95
40x40
2.6
2.92
2.9
3.21
3.2
3.49
4
4.2
49.5x49.5
2.6
3.69
2.9
4.07
3.6
4.93
4.5
5.95
60x60
2.6
4.55
2.9
5.03
3.2
5.5
4
6.71
4.8
7.85
72x72
3.2
6.71
4
8.22
4.8
9.66
4
9.22
4.8
10.87
91.5x91.5
3.6
9.67
4.5
11.88
5.4
14.01
100x100
4
11.73
5
14.41
6
16.98
5.4
22.23
6
24.52
8
31.86
113.5x113.5
4.8
15.92
5.4
17.74
