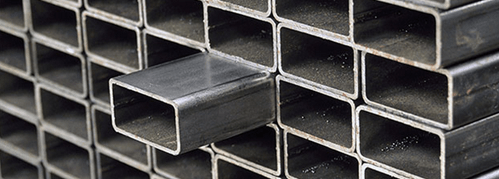

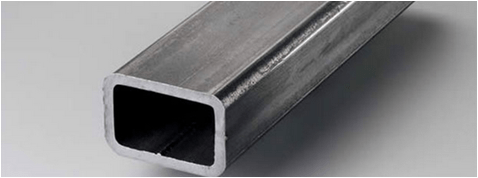

M.S. Rectangular Hollow Sections

IS 4923 (SHS) AND IS 4923 (RHS)

Rectangular Hollow Sections are manufactured from a minimum size of 40×10 mm to the maximum size of 300×200 mm with the minimum thickness of 1.6 mm to maximum of 10 mm.

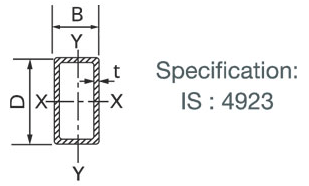

Dimension of Rectangular Hollow Section

Rectangular hollow sections are predominantly used in flexural members which require higher geometric properties along the major axis. They can also be used as compression members where the unsupported length along the major axis is higher than usual.

Rectangular Hollow Section (RHS) Size B x D (mm)
Thickness (mm)
Weight (KG/Meter)
50 x 25
2.6
2.71
50 x 25
3.2
3.24
50 x 25
4
3.88
60 x 40
2.6
3.73
60 x 40
2.9
4.12
60 x 40
3.6
4.98
60 x 40
4.5
6.02
66 x 33
2.6
3.69
66 x 33
2.9
4.07
66 x 33
3.6
4.93
66 x 33
4.5
5.95
66 x 33
4.8
6.27
80 x 40
2.6
4.55
80 x 40
3.2
5.5
80 x 40
4
6.71
80 x 40
4.8
7.85
96 x 48
2.6
5.53
96 x 48
3.2
6.71
96 x 48
4
8.22
96 x 48
4.8
9.66
96 x 48
6
11.71
122 x 61
2.6
7.12
122 x 61
3.2
8.67
122 x 61
3.6
9.67
122 x 61
4.5
11.88
122 x 61
5.4
14.01
122 x 61
6
15.38
145 x 82
3.2
10.88
145 x 82
4
13.43
145 x 82
4.8
15.92
145 x 82
5.4
17.74
145 x 82
6
19.53
172 x 92
3.6
14.25
172 x 92
4
15.75
172 x 92
4.8
18.71
172 x 92
5.4
20.88
172 x 92
6
23.01
200 x 100
4
18.1
200 x 100
5
22.26
200 x 100
6
26.4
200 x 100
8
34.38
200 x 100
10
41.94
240 x 120
4
27.78
240 x 120
5
26.97
240 x 120
6
32.05
240 x 120
8
41.91
300 x 150
5
34.04
300 x 150
6
40.53
300 x 150
8
53.22
300 x 150
10
65.49
300 x 200
5
37.96
300 x 200
6
45.24
300 x 200
8
59.5
300 x 200
10
73.34
300 x 200
12
86.77
400 x 400
6
54.7
400 x 400
8
72.1
400 x 400
10
89
400 x 400
12
105.6
400 x 400
14
121.77
