M.S. Beams –I Beam and H Beam
M.S.Beams – I Beam and H Beam-
We offer a wide range of Mild Steel (MS) Beam. With the endorsement of our trustworthy vendors, we are engaged in trading and supplying a qualitative range of MS Beam.
The offered range is manufactured using optimum quality mild steel and high-end technology with the set universal standards at vendor’s end.
These products are checked against various parameters under the strict supervision of our vendors to ensure flawless deliveries.
Beams extensively used for construction purposes for making steel-frames for buildings and bridges., Construction of transmission line towers
Automotive industry, Engineering component, Petrochemicals plants.
Beams are supplied DIN
IS – 1025 – 1994 / IS :12778 – 1989 / IS :808 – 1989 and IS :2062 :E250 A – 2006
Make
Jindal ,Vizang and Sail

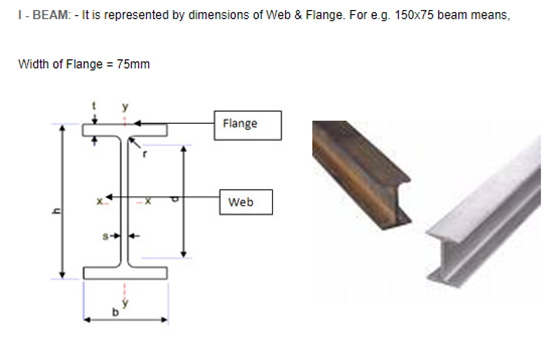

I Beam

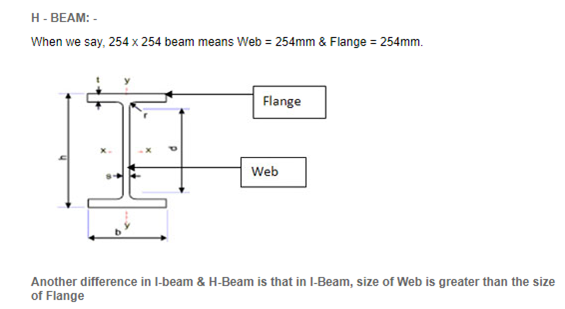

H Beam (Column)
M.S. I Beams
|
Size in mm
|
Weight per meter Kg/m
|
|---|---|
|
ISMB 100 x 50
|
8.0
|
|
ISMB 116 X100
|
13
|
|
ISMB 125X75
|
12.2
|
|
ISMB 150X 80
|
15
|
|
ISMB 175X85
|
19.5
|
|
ISMB 200X100
|
25.4
|
|
ISMB 285 X110
|
31.2
|
|
ISMB 250 X125
|
37.3
|
|
ISMB 300 X150
|
37.7
|
|
ISMB 300 X140
|
44.2
|
|
ISMB 350X165
|
49.5
|
|
ISMB 350 X140
|
52.5
|
|
ISMB 400 X 140
|
61.6
|
|
ISMB 400X165
|
56.9
|
|
ISMB 450 x150
|
72.4
|
|
ISMB 500 X 180
|
86.9
|
|
ISMB 600 X 210
|
122.6
|
M.S. H Beams
|
Section
|
Weight ( Kg/m )
|
|---|---|
|
Indian Standrad Medium Beams ( ISMB )
|
|
|
MB 100 x 50
|
8.95
|
|
MB 150 x75
|
14.96
|
|
MB 200 x100
|
24.17
|
|
MB 250 x 125
|
37.3
|
|
MB 300 x 140
|
46.02
|
|
Indian Standrad Medium Channel ( ISMC )
|
|
|
MC 75 x 40
|
7.14
|
|
MC 100 x50
|
9.56
|
|
MC 125 x65
|
13.1
|
|
MC 150 x 75
|
16.8
|
|
MC 200 x 75
|
22.3
|
|
MC 259 x82
|
34.2
|
|
MC 300 x 90
|
36.3
|
